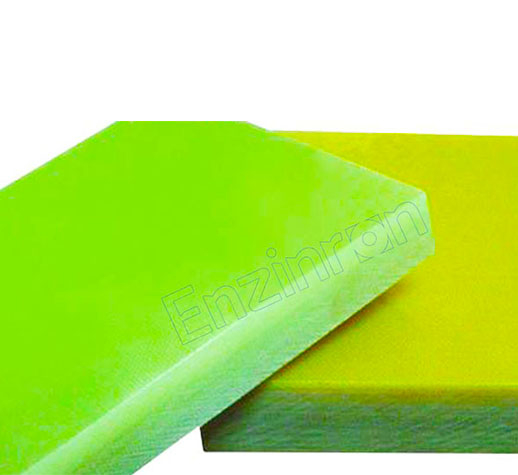

It is a material made of glass fiber and high temperature resistant resin, nanomaterials, photosensitive materials, etc., can maintain the best physical properties, can achieve high standards of welding quality, suitable for use in high-performance electronic insulation requirements of products, composite EU EHS standards and lead-free ROHS standards.
Characteristic：
It has high mechanical and dielectric properties, good heat resistance and moisture resistance, and good processability.
| Shape | Colour | ||||
 |  | ||||
| Plate | Bar | Black | Gray | Orange | Green |
| Thickness（mm） | Breadth（mm） | Length（mm） |
| 3-10 | 1200 | 2440 |
Specific gravit | ASTM D792 | g/cm3 | 1.9 |
Flexural modulus | ASTM D695 | Mpa | 386 |
Operating temperature | - | °C | 260-280 |
Thermal conductivity | DIN 52612-1 | W/(K-M) | 0.68 |
Surface resistivity | ASTM D257 | Ω | ≥106-9 |
